Network Project for Small Office

Network Project for small office

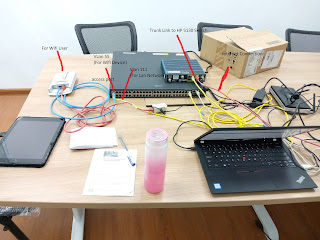

I wrote this post tongiht because i want to share my knowledge to everyone. In this project, I used the following devices.

• Cisco 819 4G Lite Router (see details)
• HP 5130-48G-POE+-4SFP+ EI Switch (see details)
• Engenius Access Point



Here is setp by step configuration of all devices.

Cisco 819 4G LTE Router configuration

 Nat Configuration For internet connection

interface GigabitEthernet0

 ip address dhcp
 ip nat outside
 ip virtual-reassembly in
 duplex auto
 speed auto

interface Vlan55

 ip address 192.168.55.1 255.255.255.0
 ip nat inside
 ip virtual-reassembly in
!
interface Vlan111
 ip address 192.168.111.1 255.255.255.0
 ip nat inside
 ip virtual-reassembly in

ip nat inside source list NAT interface GigabitEthernet0 overload

!
ip access-list extended NAT
 permit ip 192.168.111.0 0.0.0.255 any
 permit ip 192.168.55.0 0.0.0.255 any

Truck Link connection to HP 5130 Switch

interface FastEthernet2

 switchport mode trunk
 no ip address

DHCP Server cofiguration

ip dhcp pool LAN-Network

 network 192.168.111.0 255.255.255.0
 default-router 192.168.111.1
 dns-server 8.8.8.8
!
ip dhcp pool Wifi Device
 network 192.168.55.0 255.255.255.0
 default-router 192.168.55.1
 dns-server 8.8.8.8

HP 5130 switch Configuration

Truck link configuration to Cisco 819 Router

[HPE]interface GigabitEthernet 1/0/47

[HPE-GigabitEthernet1/0/47]port link-type trunk

[HPE-GigabitEthernet1/0/47]port trunk permit vlan all

[HPE-GigabitEthernet1/0/47]port trunk permit vlan all

[HPE]vlan 111

[HPE-vlan111]
[HPE]interface Vlan-interface 111

[HPE-Vlan-interface111]ip address 192.168.111.2 255.255.255.0
[HPE-Vlan-interface111]exit

 Access Port Vlan55 and Vlan111 For Wifi Devices and Lan-network

[HPE]interface GigabitEthernet  1/0/1

[HPE-GigabitEthernet1/0/1]port access vlan 111

[HPE]interface GigabitEthernet  1/0/2

[HPE-GigabitEthernet1/0/1]port access vlan 55

Default route configuration (to route internal devices to outside network)

[HPE]ip route-static 0.0.0.0 0.0.0.0 192.168.111.1

Engenius Access Point Configuration

login into access point



Hope for enjoy learning
Sharing is carring
Phone Myint Myat Zaw
2/2/2020 6:31PM
